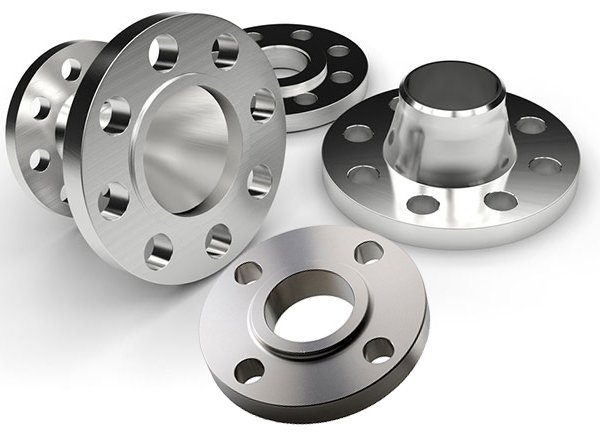

ASTM B363 Titanium Alloy Gr.2 Flanges


ASTM B564 Titanium Flanges Manufacturers, ANSI B16.5, ANSI B16.47, ANSI B16.36 Titanium Flanges, ASME SB363 Titanium Alloy Flanges, Titanium Grade 2 Flanges Suppliers in Mumbai, India.

Flanges plate

Rexton Steel & Alloys is a known stockist and exporter of Titanium Grade 2 Flanges, which has higher ductility and lower strength when compared to other Titanium alloys. On the other hand, Titanium Gr. 2 Pipe Flanges is slightly stronger than Titanium Grade 1 but equally corrosion resistant against most applications. Titanium Grade 2 Pipe Flanges is often used in in surgery and medicine as well as in aerospace, automotive, chemical plant, power generation, oil and gas extraction, sports, and other major industries. These Grade 2 Titanium Flanges are also extensively used for the manufacturing of metal orthopaedic joint replacements and bone plate surgeries. Grade 2 Titanium Pipe Flanges is ideal for products operating in high-corrosion environments, such as those used in the aircraft construction or chemical and industrial applications. In the majority of these and other engineering applications, Ti Gr. 2 Flanges has replaced heavier, less serviceable or less cost-effective materials.

Ti Gr. 2 Pipe Flanges is best strength to weight ratio of any corrosion resistant material, which possesses good weldability, strength, ductility and formability. Gr. 2 Ti Flanges offers excellent corrosion resistance, superior formability and strength between Titanium grade 1 and Titanium grade 3. Meanwhile, these Gr. 2 Ti Pipe Flanges undergoes an allotropic transformation from the hexagonal close-packed alpha phase to the body-centered cubic beta phase at a temperature of 882.5 Degree C (1620.5 Degree F). Titanium Alloy Grade 2 Flanges can also be used for parts requiring strength up to 400 Degree F and oxidation resistance to 600 Degree F.

Product Features:

  • Corrosion resistant
  • Accurate dimensions
  • Can sustain high pressure & temperature load
  • Rust proof finish

Specification:

Dimension Std ANSI/ASME B16.5, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Specification ASTM B 363/ ASME SB 363
Size ½” NB – 48” NB
Class 150#, 300#, 600#, 900#, 1500#, 2500#, etc
Pressure DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc
Werkstoff Nr 3.7165

Material & Grade :

Titanium :
Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625
Incoloy :
Grade: Incoloy 800, Incoloy 800H, INCOLOY 800HT
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Hastalloy :
Grade: Hastalloy C22, Hastalloy C276
Nickel :
Grade: Nickel 200, Nickel 201
Copper Nickel Alloy:
Grade : Copper Nickel Cu-Ni 90 / 10 (C70600)
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Alloy20 :
Grade : Alloy 20, UNS N08020, 2.4660, Incoloy Alloy 20, Carpenter 20

Equivalent Standard :

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Titanium Gr 2 3.7035 R50400 - - - - -

Chemical Composition :

Grade C N O H Ti Fe
Titanium Gr 2 0.10 max 0.03 max 0.25 max 0.015 max Bal 0.30 max

Mechanical Properties :

Grade Min.Tensile(KSI) Min.Yield(KSI) Hardness Tensile Modulus Poisson's Ratio
Gr2 50 40 14.9 103 GPa 0.34-0.10

Flange Types

Threaded Flanges Flanges Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.
Socket-Weld Flanges Flanges Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.
Slip-On Flanges Flanges Slip-On flange has a hole with matching outside diameter of pipe from which pipe can pass. The flange is placed on pipe and fillet welded from both inside and outside.
Lap Joint Flanges Flanges Lap flange is having two components, a stub end, and a loose backing flange. Stub end is butt welded to the pipe and Backing flange freely move over the pipe.
Weld Neck Flanges Flanges Weld neck flange are most widely used flanged in process piping. It gives the highest level of joint integrity due to Butt-welded with a pipe.
Blind Flanges Flanges The blind flange is a blank disc with bolt hole. These types of flanges are used with another type of flange to isolate the piping system
Screwed Flange Flanges 3Screwed Flange is used to connect other components in non-critical applications, low-pressure in which no welding is required.
Reducing Flange Flanges A reducing flange consists of a flange with one specific diameter having different bore and smaller diameter. It s used to change the diameters in piping system.
Forged Flange Flanges They are designed by using corrosion free substance and using an advanced technology. Our team of experts identify each and every product to ensure the best quality and flawless of these products available at suitable rates
Orifice Flange Flanges Orifice Flange helps to measure the flow of liquids and gases using orifice meters located on the outside diameter of the flanges. The main purpose of the orifice flange identifies the flow rate of either liquid or gas in the pipeline system.
Spectacle Flange Flanges A spectacle flange is a specialty flange made of two metal discs attached in the middle by a small section of steel. Spectable flanges get their name because they look like a pair of reading glasses, or spectacles.

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625
Incoloy :
Grade: Incoloy 800, Incoloy 800H, INCOLOY 800HT
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Hastalloy :
Grade: Hastalloy C22, Hastalloy C276
Nickel :
Grade: Nickel 200, Nickel 201
Copper Nickel Alloy:
Grade : Copper Nickel Cu-Ni 90 / 10 (C70600)
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61
Alloy20 :
Grade : Alloy 20, UNS N08020, 2.4660, Incoloy Alloy 20, Carpenter 20

Product Usage & Application :

  • Usefull in Paper & Pulp Companies
  • Usefull in High Pressure Applications
  • Usefull in Oil and Gas Industry
  • Usefull in Chemical Refinery
  • Usefull in Pipeline
  • Usefull in High Temperature Application
  • Usefull in Water Pipe Line
  • Usefull in Nuclear Power Plants
  • Usefull in Food Processing and Dairy Industries
  • Usefull in Boiler & Heat Exchangers

Application

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test

Testing

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Packing
